TDE 125 - 200 - 250 - 320
Rotary Tables

Vertical- horizontal positioning
Mechanical transmission
Pneumatic clamping

Specifications-Models TDE 125 TDE 200 TDE 250 TDE 320
Table diameter                                                      mm. 125 198 248 318
Center bore                                                          mm. 28 42 72 81
Center height                                                        mm. 110 151 180 215
Table T-slots width                                                 mm. 6 9.7 11.7 13.7
Clamp system Pmeumatic Pmeumatic Pmeumatic Pmeumatic
Clamp torque                                                         Nm. 250 400 620 1000
Worm screw/wheel ratio 1/90 1/90 1/90 1/90
Worm screw/motor ratio 1/2 1/2 1/2 1/2
Servo motor size (page 43) 1 2 3 4
Max rotation speed                                               Rpm. 16.6 16.6 16.6 16.6
Indexing accuracy                                                  sec. ±15 ±15 ±15 ±15
Minimum increase 0.001° 0.001° 0.001° 0.001°
Max allowable load vertical   kg.
80 100 270 400
Max allowable load horizontal   kg.
150 195 560 660
Max allowable thrust vertical   FxL
Nm
300 950 1700 1900
Max allowable thrust horizontal   N.
6000 12000 23000 29000
Working torque   Nm.
124 194 254 634
Table net weight   kg.
30 57 98 187

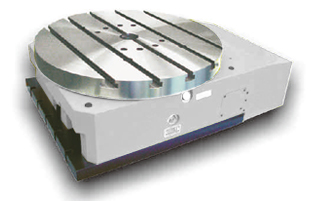

TDE-M
Rotary Tables

Horizontal positioning on machine table
Mechanical transmission - Hydraulic clamping

The TDE-M table series can be equipped with:

  • Positioning encoder mounted in axis with ±5" or ±2.5" accuracy. See page 25.
  • Personalization of the table surface with various T-slots, smooth plate, or threaded holes.
  • Painted to specific RAL colour
  • Modified motor cover

Specifications-Models TDE-M 500 TDE-M 600
Table diameter                                                      mm. 540 610
Table T-slots width                                                 mm. 16 18
Clamp torque  (hydraulic at 40 bar)                         Nm. 1500 3300
Speed motor size(page 43) 4 5
Speed reduction ratio 1/90 1/90
Max rotation speed                                               Rpm. 33.3 33.3
Indexing accuracy                                                  sec. ±10 ±10
Max allowable load vertical   kg.
2000 3000
Max allowable load horizontal   kg.
40000 65000
Working torque   Nm.
525 1004
Table net weight   kg.
250 420
