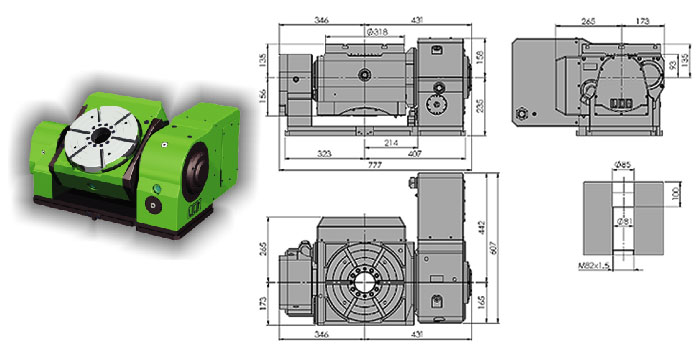

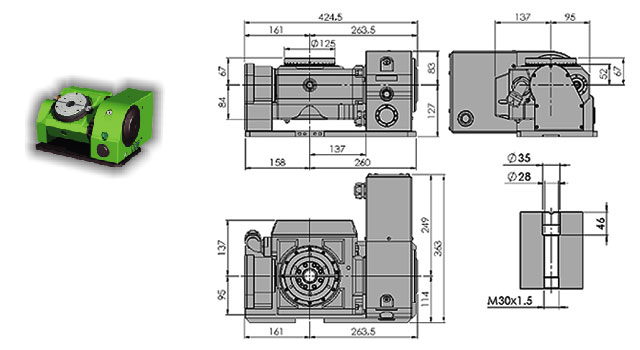

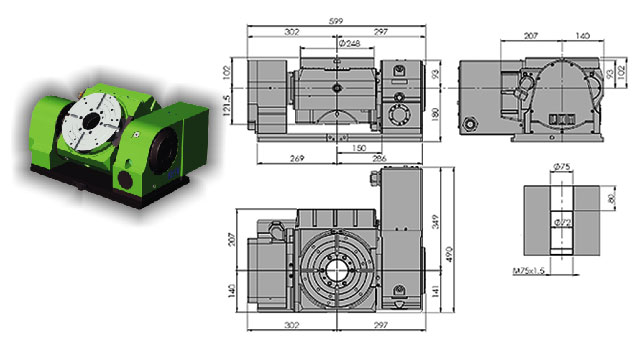

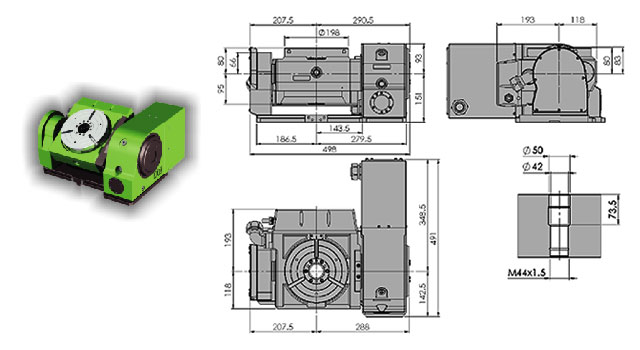

BSC 125 - 200 - 250 - 320 Tilting Rotary Tables Mechanical transmission Pneumatic clamping Specifications-Models BSC 125 BSC200 BSC250 BSC320 Table diameter                         mm. 125 198 248 318 Center bore                             mm. 28 42 72 81 Center height                           mm. 127 151 180 215 Table T-slots width                    mm. 6 9.7 11.7 13.7 Tilt range -10°~110° -10°~110° -10°~110° -10°~110° Axis Rotary Tilting Rotary Tilting Rotary Tilting Rotary Tilting Clamp System Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Clamp torque                            Nm. 250 400 400 600 600 1200 1000 1600 Worm screw/wheel ratio 1/180 1/180 1/180 1/120 1/180 1/180 1/180 1/240 Servo motor size (page 43) 1 1 2 3 3 3 4 4 Max rotation speed                  Rpm. 16.6 16.6 16.6 25 16.6 16.6 16.6 12.5 Indexing accuracy                     sec. ±15 ±15 ±15 ±15 ±15 ±15 ±15 ±15 Minimum increase 0.001° 0.001° 0.001° 0.001° Max allowable load 0°   kg. 45 95 130 220 Max allowable load 90°   kg. 25 45 90 110 Max allowable thrust 0°   N, 4600 8600 10300 13100 Max allowable thrust 90°   FxL Nm 125 370 650 830 Working torque     Nm 124 194 254 630 Table net weight    kg. 58 88 140 322 BSC 125 BSC 200 BSC 250 BSC 320 Go to Other Products    >> CNC Rotary Tables / TDE 125 - 200 - 250 - 320  CNC Rotary Tilting Tables for EDM Machines / BSL 125 CNC Tilting Rotary Tables / BSC 125 - 200 - 250 - 320 CNC Multispindle Rotary Tilting Tables / MTX 125 CNC Tilting Rotary Tables / BRC-TM   CNC Tilting Rotary Tables / BRC-M CNC Rotary Tables With Torque Motor / TDE-T CNC Rotary Tables With Torque Motor / TRB-T Tilting Heads for Milling / MD-M   Download Catalogue
