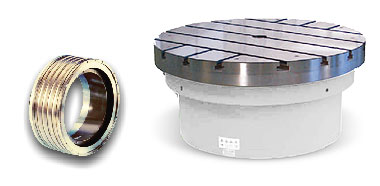

TRB-T
Rotary Tables With Torque Motor

Horizontal positioning inside the machine table
Torque motor - Hydraulic clamping

The TRB-T table series are designed for complete integration to the machine tool bench.  This solution allows full use of milling table surface without restriction.
The TRB-T table series can be equipped with:

  • Personalization of the table surface with various T-slots, smooth plate, or threaded holes.
  • Painted to specific RAL colour

Specifications-Models TRB-T 400 TRB-T 600 TRB-T 800
Table diameter                                                                    mm. 400 610 800
Table T-slots width                                                               mm. 14 18 18
Clamp System Hydraulic Hydraulic Hydraulic
Clamp torque (entry pressure)                                               Nm. 1150 (60 Bar) 3000 (40 Bar) 5900 (40 Bar)
Continuous torque (s1)                                                          Nm. 393 906 1280
Peak torque (s6)                                                                   Nm. 707 1660 2330
Max rotation speed                                                              Rpm. 250 100 90
Indexing accuracy                                                                sec. ±5 ±5 ±5
Max allowable load horizontal   kgf.
1300 2000 4200
Max allowable thrust horizontal   N
30000 65000 80000
Table net weight    kg.
230 430 680

TRB-T 400

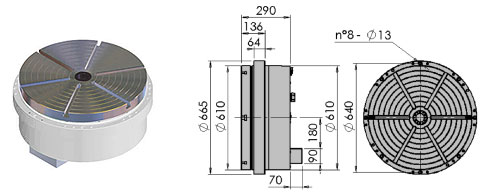

TRB-T 600

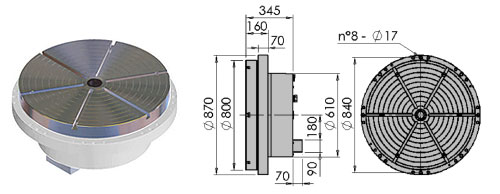

TRB-T 800
