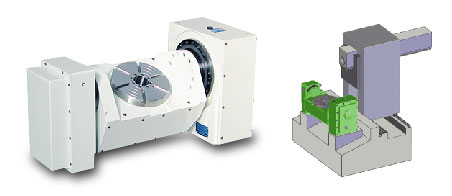

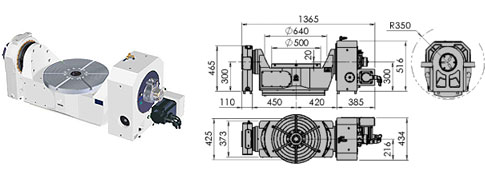

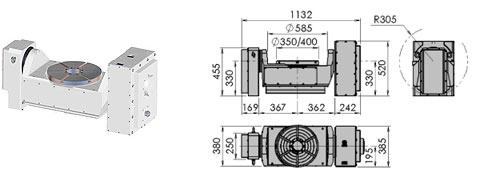

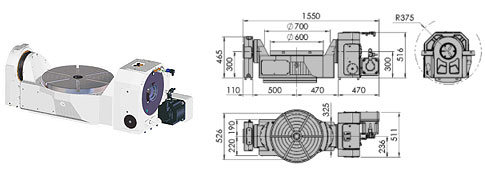

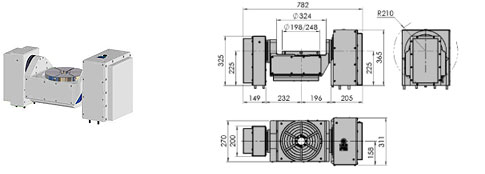

BRC-M Tilting Rotary Tables Designed and made for 5 axis machines Mechanical transmission - Hydraulic clamping Specifications-Models BRC-M 200/250 BRC-M 350/400 BRC-M 500 BRC-M 600 Table diameter                         mm. 200/250 350/400 500 600 Max diameter of workpiece        mm. 320 560 640 700 Table T-slots width                    mm. 10 14 14 18 Tilt range -30°~110° -30°~110° -30°~110° -30°~110° Axis Rotary Tilting Rotary Tilting Rotary Tilting Rotary Tilting Clamp System Pneumatic Pneumatic Pneumatic Pneumatic Hydraulic Hydraulic Hydraulic Hydraulic Clamp torque(entry pressure)    Nm. 400 (6 Bar) 1000 (6 Bar) 1000 (6 Bar) 1600 (6 Bar) 1200 (60 Bar) 2800 (60 Bar) 2200 (40 Bar) 3000 (40 Bar) axis/motor ratio 1/20 1/120 1/120 1/120 1/120 1/180 1/180 1/180 Servo motor size (page 43) 3 3 4 4 4 5 5 6 Max rotation speed                  Rpm. 25 25 25 25 25 16.6 16.6 16.6 Indexing accuracy*                   sec. ±10 ±30 ±10 ±30 ±10 ±30 ±10 ±30 Working torque   Nm 200 200 670 670 670 1130 1130 2370 Max allowable load 0°   kg. 150 300 500 700 Max allowable load 90°   kg. 125 250 400 550 Max allowable thrust 0°   N. 10000 18000 22000 30000 Max allowable thrust 90°   FxL Nm 800 1400 1800 2700 Table net weight   kg. 160 400 550 750 * The BRC-M table series are prepared for installation of high resolution encoders (up to ±2.5") on both axis.    They can also be equipped with hydraulic/pneumatic distributor for the control of any workholding equipment installed on the    table surface. BRC-M 200/250 BRC-M 350/400 BRC-M 500 BRC-M 600 Go to Other Products    >> CNC Rotary Tables / TDE 125 - 200 - 250 - 320  CNC Rotary Tilting Tables for EDM Machines / BSL 125 CNC Tilting Rotary Tables / BSC 125 - 200 - 250 - 320 CNC Multispindle Rotary Tilting Tables / MTX 125 CNC Tilting Rotary Tables / BRC-TM   CNC Tilting Rotary Tables / BRC-M CNC Rotary Tables With Torque Motor / TDE-T CNC Rotary Tables With Torque Motor / TRB-T Tilting Heads for Milling / MD-M   Download Catalogue
