TDE-T
Rotary Tables With Torque Motor |
Torque motor
Hydraulic clamping |
The TDE-T table series can be equipped with:
- Personalization of the table surface with various T-slots, smooth plate, or threaded holes.
- Painted to specific RAL colour
|
|
 |
| Specifications-Models |

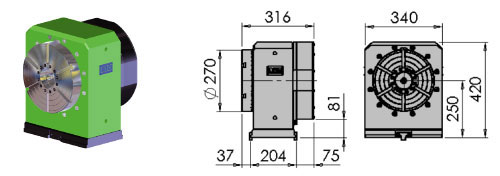

TDE-T 270 |

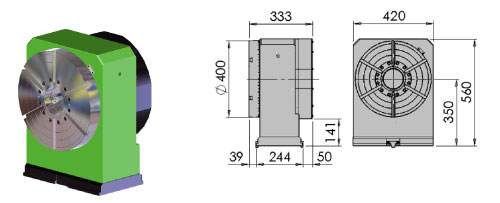

TDE-T 400 |

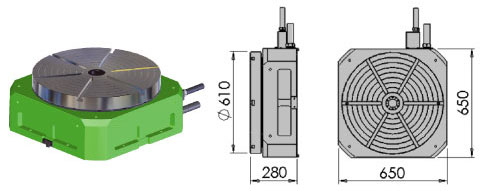

TDE-T 600 |
| Table diameter mm. |
270 |
400 |
610 |
| Center bore mm. |
75 x L=186 |
105 x L=201 |
50 x L=30 |
| Center height mm. |
250 |
350 |
///// |
| Table T-slots width mm. |
12 |
14 |
18 |
| Clamp System |
Hydraulic |
Hydraulic |
Hydraulic |
| Clamp torque (entry pressure) Nm. |
855 (50 Bar) |
1960 (50 Bar) |
3000 (40 Bar) |
| Continuous torque (s1) Nm. |
345 |
536 |
906 |
| Peak torque (s6) Nm. |
582 |
990 |
1660 |
| Max rotation speed Rpm. |
150 |
120 |
100 |
| Indexing accuracy sec. |
±5 |
±5 |
±5 |
|
400 |
1300 |
///// |
| Max allowable thrust |
|
FxL
Nm |
|
1900 |
3400 |
4900 |
| Max allowable load horizontal |
|
kgf. |
|
///// |
///// |
3000 |
| Max allowable thrust horizontal |
|
N |
|
///// |
///// |
65000 |
|
200 |
315 |
620 |
TDE-T 270
 |
TDE-T 400
 |
TDE-T 600
 |
|
