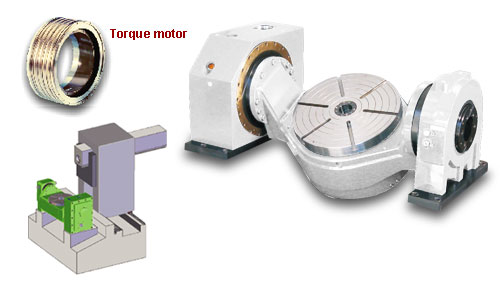

| Specifications-Models |

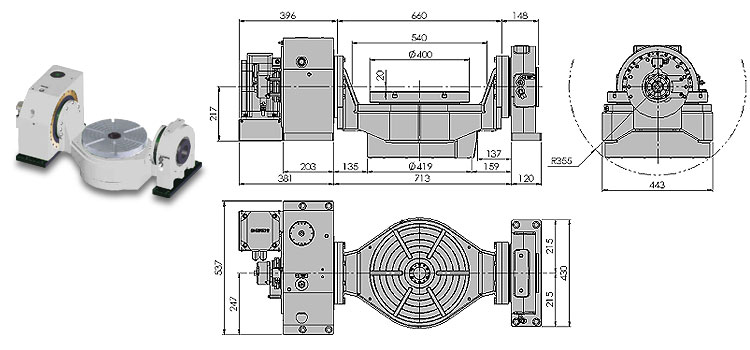

BRC-TM 400 |
| Table diameter
mm. |
400 |
| Max diameter of workpiece
mm. |
520 |
| Table T-slots width
mm. |
14 |
| Tilt range |
-110°~110° |
| Axis |
Rotary |
Tilting |
| Clamp System |
Hydraulic |
Hydraulic |
| Clamp torque at 60 Bar Nm. |
1200 |
2800 |
| Axis/motor ratio |
1/1 |
1/180 |
| Servo motor size (page 43) |
Torque |
5 |
| Max rotation speed
Rpm. |
90 |
16.6 |
| Indexing accuracy
sec. |
±5 |
±25 |
|
393 (S1) |
1130 |
| Max allowable load 0° |
|
kg. |
|
500 |
| Max allowable load 90° |
|
kg. |
|
400 |
| Max allowable thrust 0° |
|
N. |
|
22000 |
| Max allowable thrust 90° |
|
FxL
Nm |
|
1800 |
|
550 |
