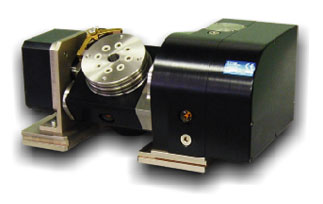

Tables suitable to be used on EDM machines to effect machining operations completely immersed in dielectric fluid.
Most important features:
- Structure fully made of antioxidant (stainless steel and anodized alloy)
- Indexing accuracy monitored by in-axis encoder (up to
±2.5 sec.)
- Low tension digital brushless motors
- Fully sealed sump thanks to o-ring seals
- Suitable for fixing the most important chucks for pallets
- Possibility to be controlled by LCM TNC 50 2AX NC
|
