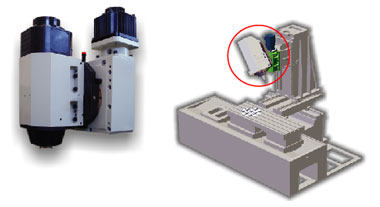

MD-M
Tilting Heads for Milling |
Mechanical transmission
Hydraulic clamping |
|
 |

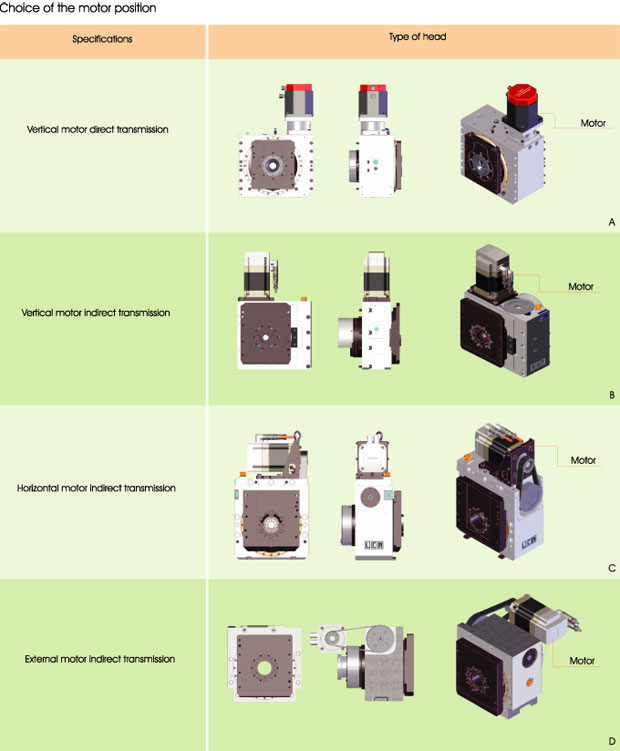

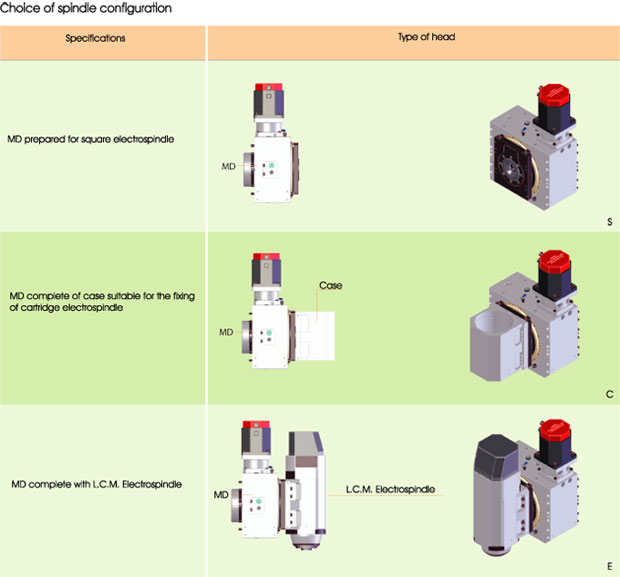

| Our engineers are at your disposal to support you in the choice and personalization of the units, if necessary. |
MD-M
Tilting Heads for Milling |
Mechanical transmission
Hydraulic clamping |
|
 |
| Specifications-Models |

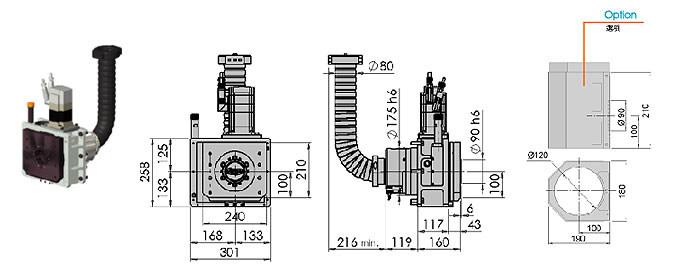

MD 90 |

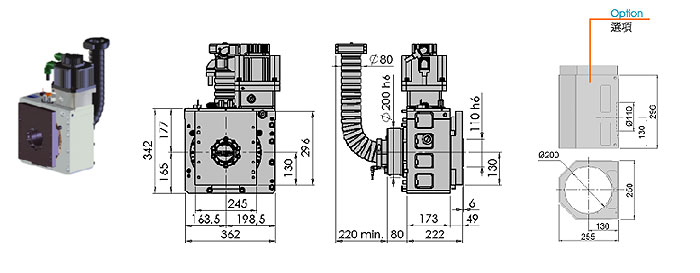

MD 125 |

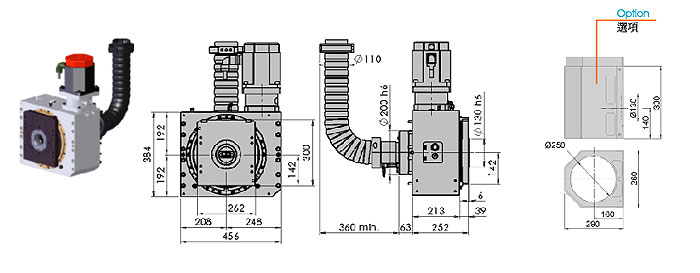

MD 160 |

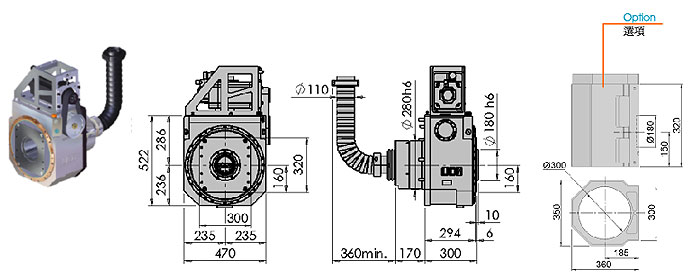

MD 200 |
| Tilt range |
±100° |
±100° |
±100° |
±100° |
| Maximum head rotation speed RPM. |
50 |
50 |
33 |
33 |
| Clamp torque (Entry oil pressure) Nm. |
1100 (100 Bar) |
1360 (50 Bar) |
2000 (50 Bar) |
7300 (60 Bar) |
|
168 |
504 |
1386 |
1386 |
| Indexing accuracy sec. |
±7 |
±7 |
±7 |
±7 |
| Repeatability sec. |
±3 |
±3 |
±3 |
±3 |
| Sevo motor size (page 43) |
3 |
5 |
6 |
6 |
| Maximum diameter of electrospindle |
|
mm. |
|
120 |
200 |
250 |
300 |
| Head net weight (without electrospindle) |
|
kg. |
|
80 |
150 |
220 |
415 |
TRB-T 400
 |
TRB-T 600
 |
TRB-T 800
 |
TRB-T 800
 |
|
