| Specifications-Models |

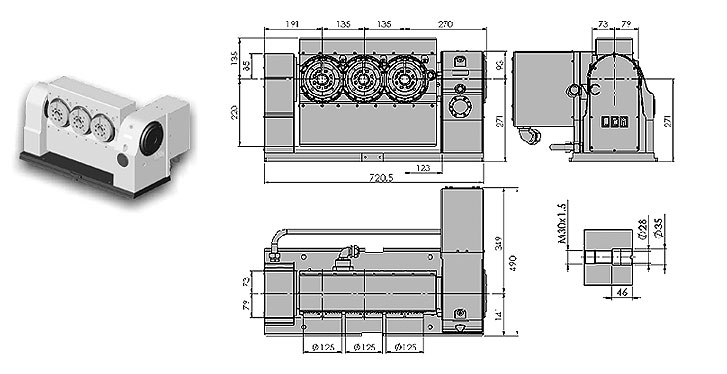

MTX 125-3 |

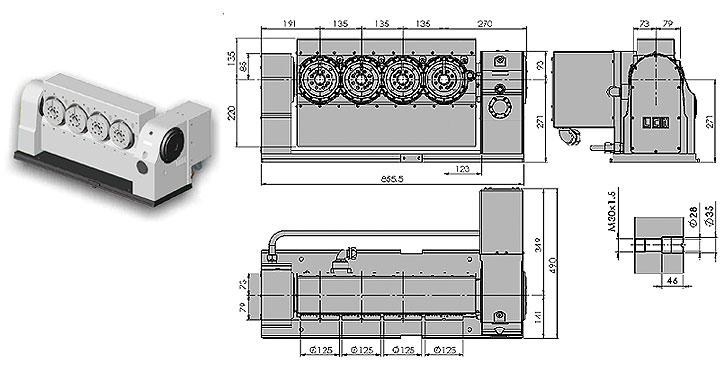

MTX 125-4 |
| Table diameter mm. |
125 |
125 |
| Center bore mm. |
28 |
28 |
| Center height mm. |
271 |
271 |
| Table T-slots width mm. |
6 |
6 |
| Tilt range |
-10°~110° |
-10°~110° |
| Axis |
Rotary |
Tilting |
Rotary |
Tilting |
| Clamp System |
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic |
| Clamp torque Nm. |
250 |
1000 |
250 |
1000 |
| Worm screw/wheel ratio |
1/234 |
1/180 |
1/234 |
1/180 |
| Servo motor size (page 43) |
2 |
3 |
2 |
3 |
| Max rotation speed Rpm. |
12.8 |
16.6 |
12.8 |
16.6 |
| Indexing accuracy sec. |
±30 |
±30 |
±30 |
±30 |
| Minimum increase |
0.001° |
0.001° |
| Max allowable load 0° |
|
kg. |
|
40 |
40 |
| Max allowable load 90° |
|
kg. |
|
30 |
30 |
| Max allowable thrust 0° |
|
N, |
|
3200 |
3200 |
| Max allowable thrust 90° |
|
FxL
Nm |
|
650 |
650 |
|
190 |
190 |
|
170 |
195 |
